Elbows
Round copper elbow, by angle
Crimped round elbow in five standard angles, from number 0 (30 degrees) to number 4 (90 degrees).
$33.95each
Priced each.
Need a size, a shape or a match that is not listed? Request a custom quote
- SKU HC-D-ELA-3R-16-N3 · Sold each
- Fabricated to order in our Cleburne shop. We confirm the lead time when we confirm your order.
- Free shipping on orders of $500.00 or more; a flat $45.00 below that.
Details
About this piece
Elbows are numbered 0 to 4 by how far they turn the pipe: number 0 is 30 degrees, 1 is 45, 2 is 60, 3 is 75 and 4 is 90. The 75 degree number 3 is the one most downspouts use, because it carries the pipe in to the wall and out at the foot without a hard right angle.
Each elbow is crimped on one end to slide into the next piece, and fabricated in our Cleburne shop in 16 oz or 20 oz copper in 3 or 4 inch round. Two elbows make an offset around a ledge or a sill.
Shipping and returns
Shipping
Materials ship from Cleburne, Texas to addresses in the United States. Shipping is free on orders of $500.00 or more and a flat $45.00 below that. Large crated pieces may need freight, and we confirm that with you before we invoice.
Lead time
Every piece is fabricated to order, so the lead time depends on what you order and the shop schedule. We give you a date when we confirm your order.
Returns
Because each piece is made to order, returns are arranged with the shop case by case. Check your order when it arrives and call us about any damage or mistake.
Specifications
- SKU
- HC-D-ELA
- Angles
- 30°, 45°, 60°, 75° and 90° (numbers 0 to 4)
- Diameters
- 3 in, 4 in round
- Copper
- 16 oz (0.0216 in) or 20 oz (0.027 in)
- Ends
- One end crimped
- Sold by
- Each
Pieces usually ordered alongside this one.
Goes well with

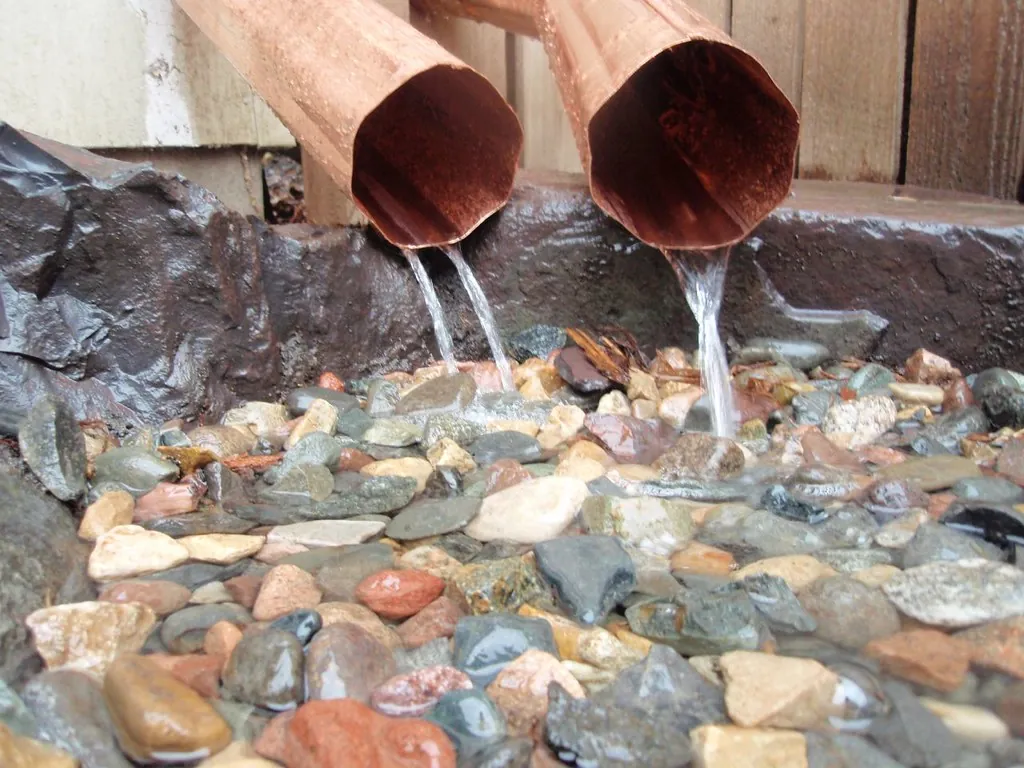

Corrugated round copper downspout
SKU HC-D-RC
From $19.00 per ft
Choose options: Corrugated round copper downspout
Reviews
What customers say, in their own words
These reviews are loaded live from our review profile. We do not edit or select them.
Elbows
Common questions
Number 3 (75 degrees) is the standard for most downspouts. Use number 4 (90 degrees) where the pipe must turn square, and the shallower numbers 0 to 2 for gentle offsets.
An A-style elbow bends across the wide face, to bring rectangular pipe out from the wall. A B-style bends across the narrow side, to jog it sideways along the wall.
Materials and installation
Shipped anywhere, installed nearby
Materials ship nationwideEvery state, from Cleburne, Texas.
Installation is localNear Cleburne, confirmed by ZIP code.
Materials are fabricated in Cleburne and shipped to any state. Installation is a separate, local service for addresses near Cleburne, Texas, confirmed by ZIP code when you request a quote.
Questions about this piece?
Call the shop or send a message. We will tell you what fits your house.
